CMB-France #7

Unbiased CMB polarisation maps from the ground with minimal assumptions about atmospheric emission [arXiv:2509.16302]

Simon Biquard

APC/CNRS – moving to University of Manchester

15 October, 2025

CMB map-making in a nutshell

From time-ordered data to maps

Start from figure on the right!

Lensing converts \(E\) → \(B\) and vice versa.

CMB signal is faint: each individual data sample is noise dominated.

To achieve a good sensitivity across a significant sky area, CMB telescopes collect lost of measurements across the targeted area by scanning. This also helps to mitigate low-frequency instrumental noise.

The raw data is therefore made of time series (one/detector) called time-ordered data (TOD).

With knowledge of the scanning strategy (pointing information) we can reconstruct the observed sky maps → map-making.

Map-making = key starting point of analysis pipeline

Must preserve all information + mitigate as many systematics as possible

map-making = from time-ordered data (TOD) to sky maps at observed frequencies

data reduction step: ~6 orders of magnitude

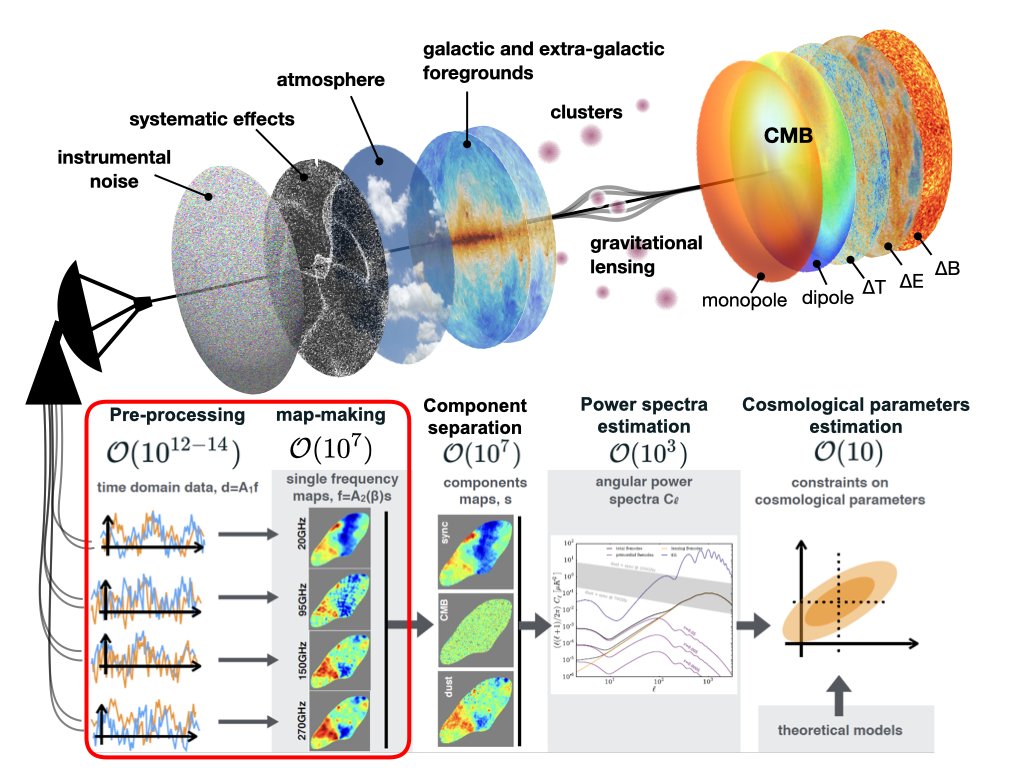

Traditional CMB analysis pipeline steps (credit: Josquin Errard).

Linear data model

Formally: linear data model

Inverse problem – what we recover/know/assume

Linear estimator = mapping of data to maps

\[ d = Ps + Tx + n \]

• we know \(d\) (the data)
• we estimate \(s\) (sky maps) and marginalise over \(x\) (spurious signals)
• we model \(P\) (pointing) and \(T\) (templates)
• we assume that \(n\) (noise) has covariance \(N\)

\(T\) examples:

• “baselines” (constant offsets) → destriping
• HWP or scan-synchronous signals

“Map-making” is a linear operation \(\hat s = L d\) that maps measurements to estimated sky maps.

Unbiased estimators

Weighted co-addition of the data with spurious signals filtered out.

Generic linear unbiased estimator [Poletti et al. 2017] \[ \hat s = (P^\top F_T P)^{-1} P^\top F_T d \]

with filtering and weighting operator \[ F_T = W \left[\mathbb I - T (T^\top W T)^{-1} T^\top W \right] \]

• filters out unwanted signals (columns of \(T\))
• weights orthogonal modes by weight matrix \(W\)
• “single step destriper” with generalised templates

Minimum variance (optimal) if \(W = N^{-1}\) (generalised least squares, GLS).

Polarisation maps from the ground

All these points are part of the motivation for this study about reconstruction polarisation from the ground.

Submitted to PRD for publication consideration.

SB, Errard and Stompor, 2025 [arXiv:2509.16302, submitted to PRD]

Observing from the ground

Major challenge for map-making from the ground: atmospheric emission

Loading → more photons on average

Extra effect: fluctuations because atmosphere is a turbulent medium

HWP: change angle of polarisation with respect to orientation of the waveplate

Goal of study: assess efficiency of technical solutions to mitigate atmosphere

• Major challenge: atmosphere
  • much brighter than CMB
  • loading: increase detector noise
  • turbulence: spatial + temporal variations
  • negligible linear polarisation
• Hardware solutions

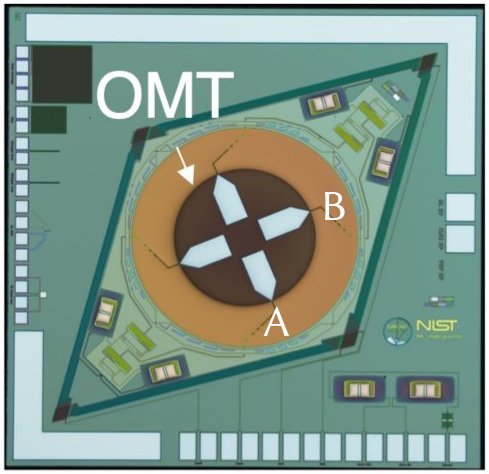

  • dual-polarisation detectors
  • continuously rotating HWP

Credit: SO collaboration.

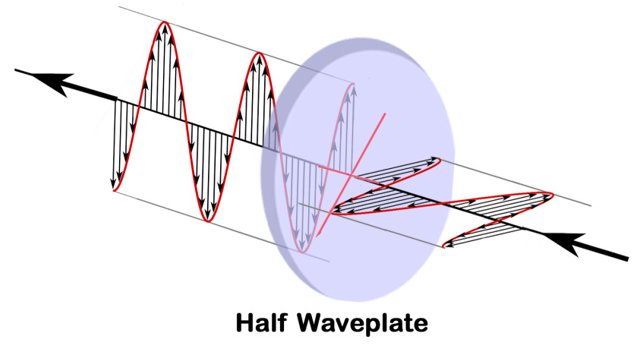

Half waveplate illustration (source).

Emission spectrum of the atmosphere for different levels of PWV [Morris et al. 2022].

Atmosphere simulation. Credit: R. Keskitalo & J. Borrill.

Unbiased polarisation map-making

Total intensity \(I\) hard to recover from the ground because of atmosphere.

Focus on polarisation instead; temperature large scales already very well measured from space (Planck).

Compare DW and PD and see how they manage to take advantage of hardware solutions.

very demanding benchmark!

Focus on unbiased reconstruction of polarisation (\(Q\) and \(U\)).

Data: \(d = Ps + Tx + n\)

• Minimal model
  • \(T\) very general: no specific temporal or spatial structure
  • atmosphere identical for orthogonal detectors
• Down-weighting (DW)
  • no template, \(Tx \rightarrow n^\mathrm{atm}\)
  • GLS with \(W = (N_\mathrm{atm} + N_\mathrm{instr})^{-1}\)
  • stationary noise, independent between detectors
• Ideal reconstruction
  • atmosphere-free data: \(d = P s + n\) (instr. noise only)
  • GLS with \(W = N_\mathrm{instr}^{-1}\)
  • benchmark tool

Pair differencing

Write down minimal model for one pair of detectors.

Use template filtering to estimate \(Q\) and \(U\), marginalising over \(x\).

Find pair differencing!

Minimal model: \(T \rightarrow \mathbb I\) \[ d = \begin{bmatrix} d^A \\ d^B \end{bmatrix} = \begin{bmatrix} \mathbb I \\ \mathbb I \end{bmatrix} x + \begin{bmatrix} P_{QU} \\ -P_{QU} \end{bmatrix} s_{QU} + \begin{bmatrix} n^A \\ n^B \end{bmatrix} \]

GLS template filtering estimator gives \[ \hat s_{QU} = (P_{QU}^\top N_-^{-1} P_{QU})^{-1} P_{QU}^\top N_-^{-1} d_- \] with \(d_- \equiv d^A - d^B\) and \(N_-\) the covariance of \(n^A - n^B\).

Minimal model equivalent to pair-differencing (PD).

Used e.g. in QUaD [arXiv:0805.1944], BICEP/Keck [arXiv:1403.4302], POLARBEAR [arXiv:1403.2369], SPT-3G [arXiv:2505.02827].

Questions

1. Compare pair differencing and down-weighting
2. Compare with ideal reconstruction
3. Impact of systematic effects

Numerical simulations

To answer these questions, I performed advanced time-domain simulations of an SO-like small aperture telescope.

I used the toast simulation framework and adjusted it for the needs of the study.

I used the NERSC and Jean-Zay supercomputers.

In particular I implemented the interface between toast and our reconstruction library, mappraiser (see figure).

Massively parallel implementation of the unbiased map-making estimator presented earlier, which I developed further.

• SAT with 350 pairs of detectors + HWP
• Atmosphere simulation using TOAST 3 framework
• Instrumental \(1/f\) noise
  • \(S(f) = \mathrm{NET}^2 [1 + (f_\mathrm{knee}/f)^\alpha]\)
  • variation around nominal values
• Map-making code: MAPPRAISER library [arXiv:2112.03370]

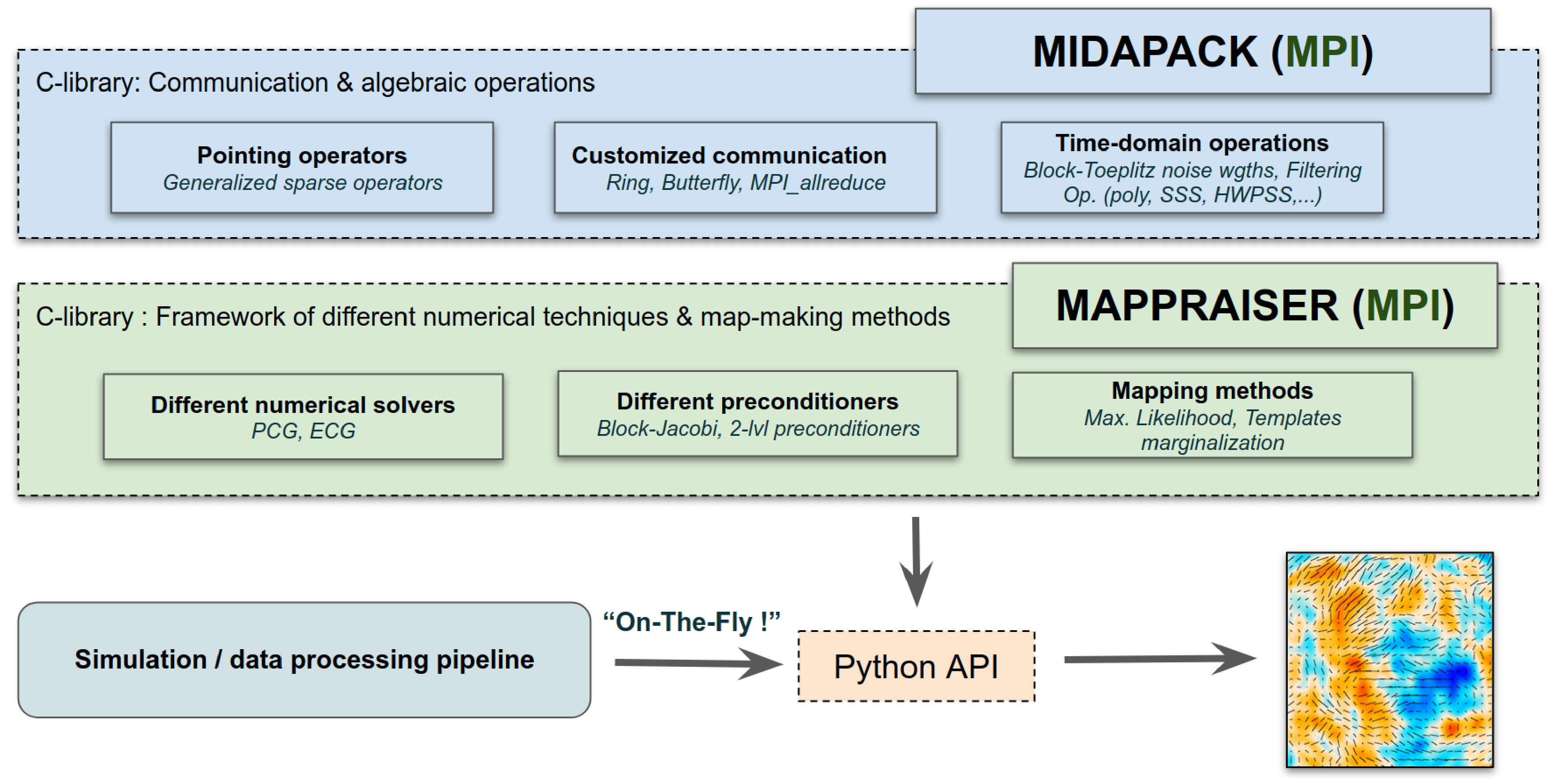

Overview of the mappraiser architecture. Credit: Hamza El Bouhargani.

Example \(1/f\) power spectral density.

Results: PD vs DW

In the absence of systematics, PD is nearly optimal.

No need/reason to try and improve beyond that, unless a better model of atmosphere is available.

How precise is PD compared to ideal reconstruction (perfect model)?

Implicit differencing in DW (\(W_A = W_B\)) necessary to avoid atmosphere leakage.

Noise power spectra compared to ideal.

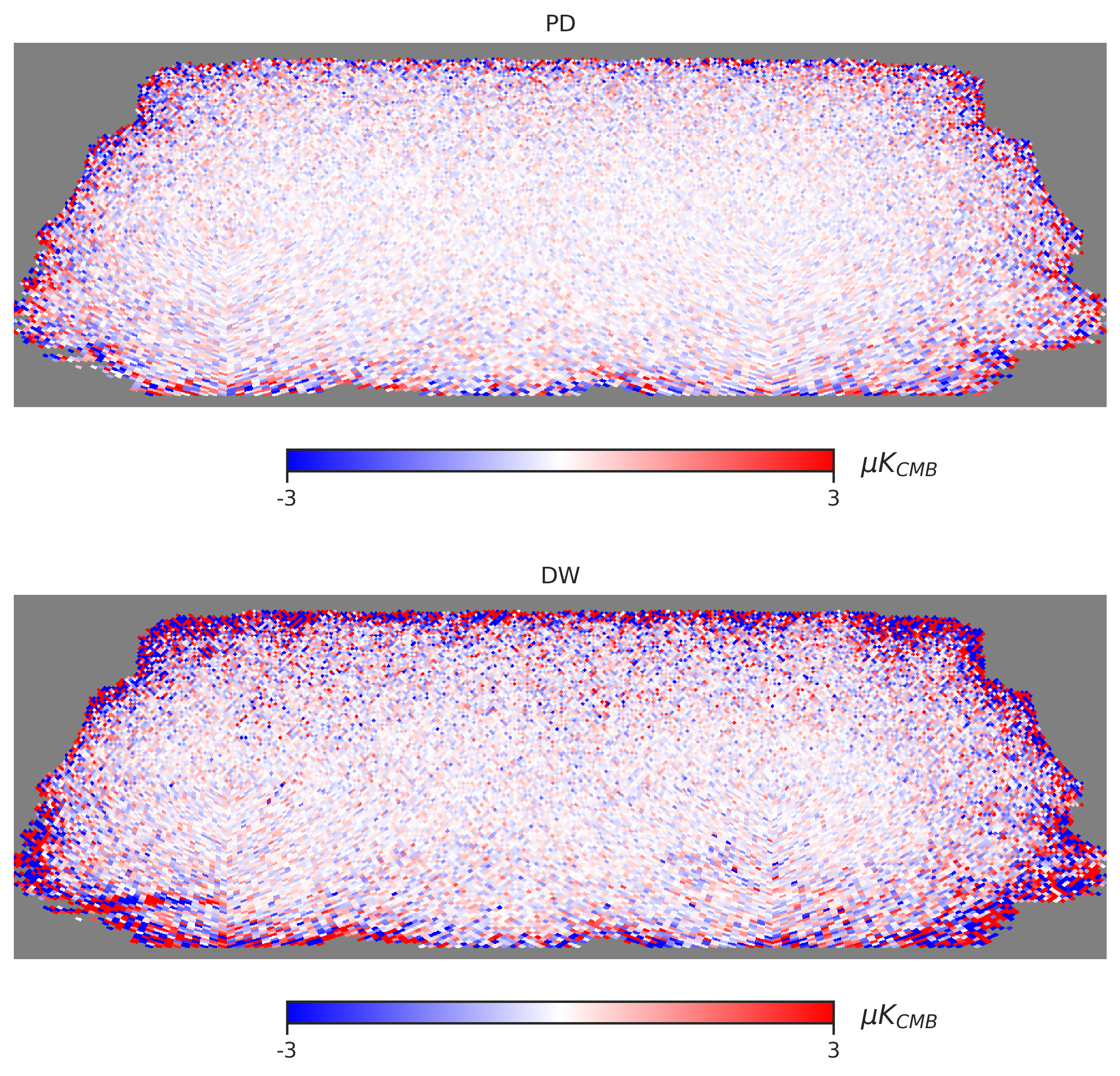

Noise maps from PD (top) and DW (bottom) with 10% variation of noise parameters across focal plane.

Results: impact on \(r\)

How do these results translate in terms of \(r\) sensitivity?

Remarkably little impact given the very general assumption behind PD.

• 25 realisations of realistic instrumental \(1/f\) noise
• detector-dependent parameters (knee, slope, white level)
• noise power spectrum \(N_\ell^{BB}\) from reconstructed maps \(\hat s^\mathrm{pd}_{QU}\)

Fisher forecast \[ \sigma(r=0)^{-2} \approx \frac{f_\text{sky}}{2} \times \sum_{\text{bins $b$}} \Delta_\ell (2\ell_b+1) \Bigg( \frac{C_{\ell_b}^{BB,\text{prim}} \rvert_{r=1}}{C_{\ell_b}^{BB,\text{lens}} + \langle N_{\ell_b}^{BB} \rangle} \Bigg)^2 \]

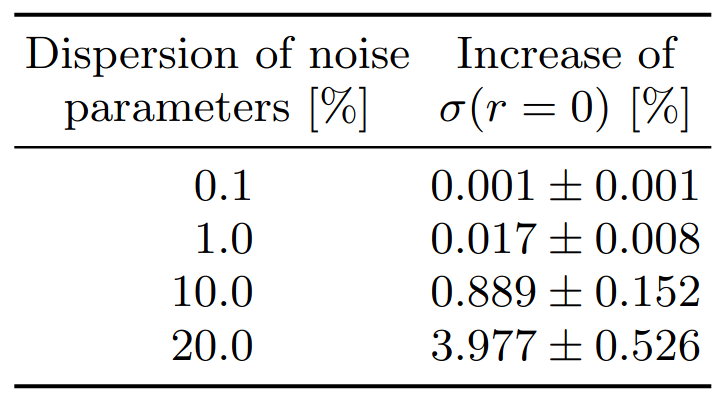

Compare \(\sigma(r=0)\) from PD with ideal reconstruction:

Results: gain errors

systematics → possible atmosphere leakage

gain error: one example of systematic, “case study”

justify 1% gain error (achieved by other experiments)

expect similar conclusion for other effects

• random gain error in pairs
• additional noise comparable to case with uneven detector noise at low multipoles
• efficient mitigation by HWP

Case-by-case analysis required for each systematic and each method

PD noise power spectra with 0.1 and 1% gain errors.

Conclusions

• We want ground experiments to measure/constrain \(r\)
• We need a robust (and efficient) pipeline that mitigates contaminants
• This work
  • clarifies assumptions behind pair differencing
  • demonstrates its near-optimal performance with realistic instrumental noise
  • shows why orthogonal detector pairs + HWP are a powerful combination
• Next steps
  • other systematics (pointing, beam, HWP… you name it)
  • furax implementation (cf. previous talks by Wuhyun & Pierre) and application to Simons Observatory SAT data

Backup

Practical considerations

• Size of the problem
  • \(\mathcal O(1000)\) detectors + months of data + sampling @100 Hz → \(n_t \sim 10^{11}\) samples (TB scale)
  • resolution + sky coverage + Stokes (I)QU → \(n_p \sim 10^5 - 10^8\) sky pixels
  • correlations → process data in one go
  • Numerical efficiency and parallelism are key!
• Noise correlations \(N\) (size \(n_t \times n_t\))
  • split data in chunks (trade-off efficiency/quality)
  • assume noise is stationary in each chunk, \(N(t,t')=N(\lvert t-t' \rvert)\)
  • characterise in Fourier space (power spectral density, PSD)
• Iterative solvers
  • \(\hat s = A^{-1} b\) → instead solve \(A s = b\)
  • store \(A\) implicitly without constructing the whole matrix
  • preconditioned conjugate gradient (PCG) algorithm
  • convergence speed influenced by noise correlations

Results: PD map sensitivity

White noise → analytical estimate of average noise level

PD ideal if identical noise properties. Perturb the nominal noise model and see how much we lose.

Figure: excess variance in \(Q/U\) maps as a function of the variation of noise levels.

White instrumental noise.

• Ideal if \(\sigma_A = \sigma_B\)
• How much degradation if \(\sigma_A \neq \sigma_B\)?
• Excess variance depends on \(\varepsilon \equiv \frac{\sigma_A^2 - \sigma_B^2}{\sigma_A^2 + \sigma_B^2}\)
• Suboptimal propagation of noise levels after differencing

Analytical prediction (black) vs measured excess variance.

Excess noise spectrum in pair differencing with/without HWP in EE and BB.

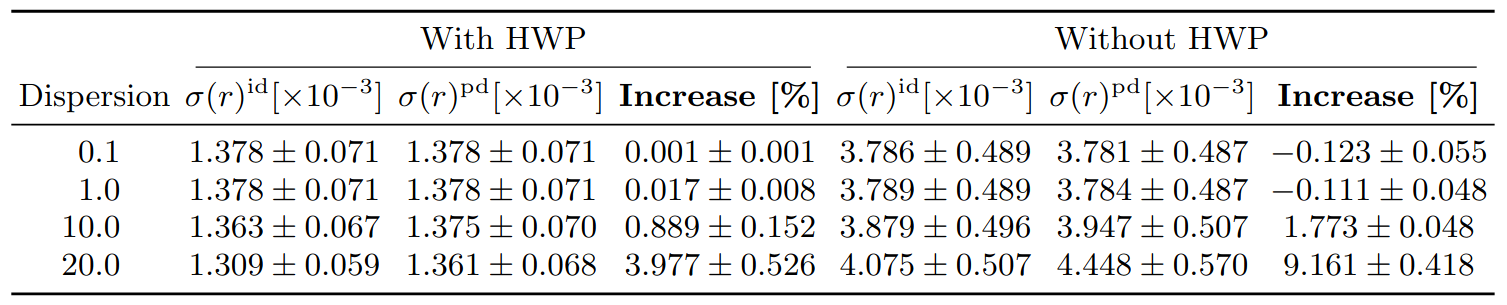

Results: impact on \(r\) (HWP/no HWP)
